Kaffelogic Nano 7 Coffee Roaster

About Kaffelogic Nano 7 Coffee Roaster

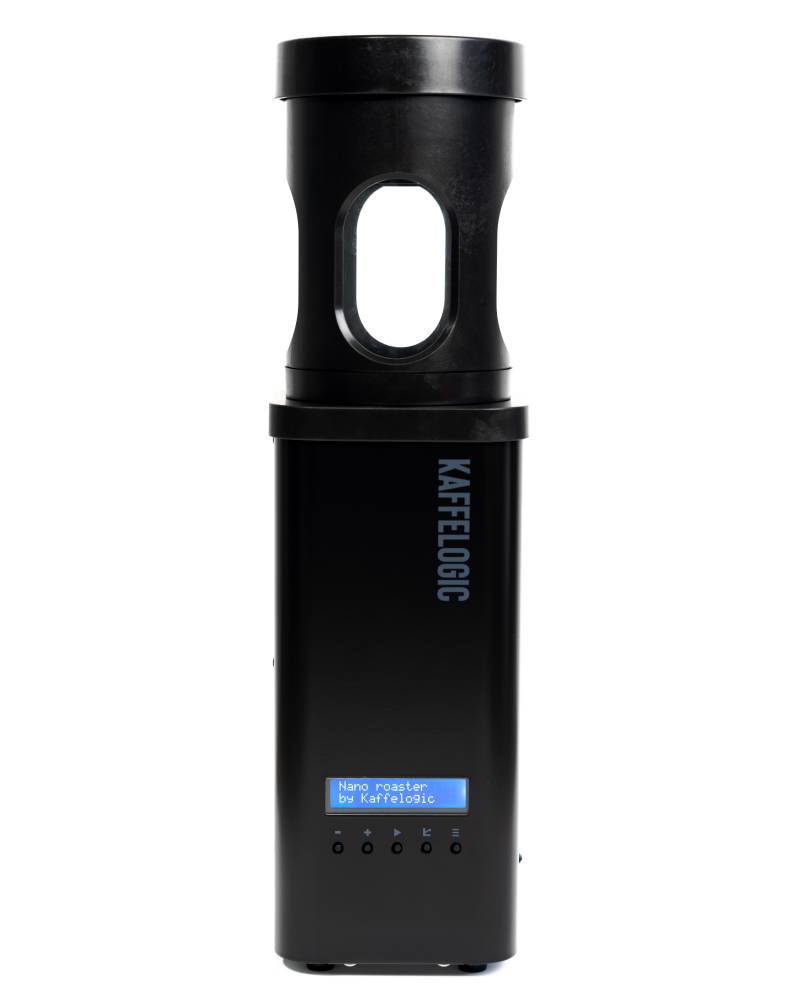

OVERVIEW OF THE KAFFELOGIC NANO 7 ROASTER

The Nano 7 coffee roaster is designed and manufactured by Kaffelogic in New Zealand. It delivers laboratory-grade roast control in an ultra-compact form — ready to use straight out of the box. It is a roaster intended for home users but can be operated as simply as can be. It is capable of sophisticated, commercial quality sample roasting by utilizing numerous built in profiles and has the ability to create custom profiles. The Kaffelogic Studio software can add a lot of interest and control to the process, but roasts can be done directly from the roaster itself without the need for a computer or software. The roaster by itself can roast from 50 to 120 grams. The optional Boost Kit, anodized aluminum inserts that snap on to the roast chamber, can increase the capacity to as much as 200 grams.

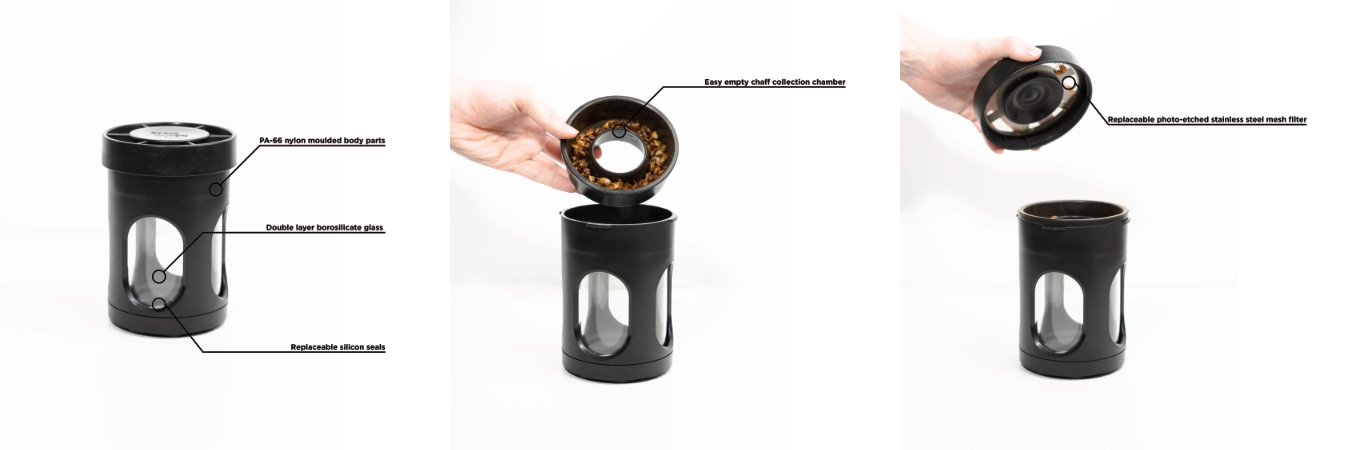

The upper chamber, made of rugged metal and insulated glass, simply attaches by gravity to the base. Atop the roasting chamber, the lid contains a fine mesh metal screen through which air can pass; removing the lid reveals chaff collector. Chaff should be emptied after each roast.

Easy, Fast & Convenient

We’ve engineered the roaster to make it as simple as possible to roast on demand – from go to whoa in just 12 minutes. There’s no mess, just a delicious coffee aroma, and there’s the added satisfaction of saving money every time you roast by buying green beans.

Repeatability & Perfect Control

Gear up for the best coffee you’ve ever roasted. Take 50-200 grams of green beans and use the Kaffelogic Studio software to create and save your own Roast Profiles – or get going with our pre-loaded favourites. It’s a world of infinite possibilities and unsurpassed tastes.

Kaffelogic Studio

Get your coffee dialed in. Studio provides a live view of your roasting process and lets you save, modify, share and update roasting profiles. It is available for free download. Maximize control over your coffee roasting process with Studio's user-friendly interface and extensive profile management capabilities.

Sustainability, Longevity & Support

Our Roasters have been designed with longevity in mind, and all components are replaceable. Feel confident in your purchase knowing that maintenance is easy and hassle-free.

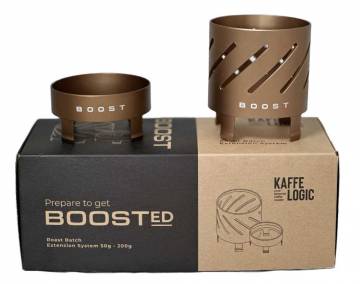

BOOST KIT

Take your roasting to the next level with the Kaffelogic BOOST Kit. Designed for those who demand absolute control, this upgrade transforms your Nano 7 into a flexible capacity machine, offering the freedom to roast exactly the amount you need, from a single 50g sample up to a 200g* production roast.

With BOOST, you can adjust your load size in precise 10g increments. The roaster automatically scales your chosen profile’s heat, fan and other settings to match your specific coffee weight. It takes the guesswork out of profiling, ensuring consistent, high-quality results whether you are roasting a micro-batch or filling a jar.

What’s in the kit?

Activation Code**: Unlocks the variable batch size features on your roaster.
Chamber Extension Rings (Short & Tall): Precision-engineered rings that expand the roast chamber to accommodate loads over 120g without spills.

Kaffelogic Nano 7 Preferences Walkthrough

KAFFELOGIC STUDIO APP

At your option, you can use the Kaffelogic Studio application, made for both Apple and Windows platforms, to use built in profiles, customize and save profiles and to generally tweak roasts to your particular taste.  Kaffelogic Studio gives you complete control and a ton of information during a roast. Connect the Kaffelogic to your computer with the provided USB cable. Start with any of the profiles provided in the app. Use them as they were developed or modify and save them for future recall. The roaster's ability to follow previous profiles with accuracy is a marvel.

A partial list of profiles that are included in Kaffelogic Studio:

• Kaffelogic Natural Profile
• Kaffelogic Washed Profile
• Cupping profile(s)
• Decaf profile
• A variety of "Rest" profiles based on the elevation where the coffee was grown.
• A variety of "RTD" or Ready To Drink profiles likewise based on origin altitude

Kaffelogic also offers early access to profiles on their website. At the moment, there are new profiles for drip and espresso.  To add new profiles: Start by downloading and then unzipping the file. Open up Kaffelogic Studio, and click on the "View roaster" button. In the pop-up window go to the profiles tab, and click on "add profile". Select your new profiles and click open. That's it.

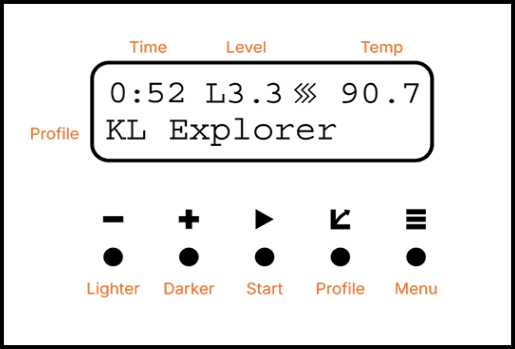

Kaffelogic Display Panel
All roasting functions and profiles can be run directly from the roaster.

Changing profiles:

While KL Explorer is a great starting point, users are encouraged to experiment with the other profiles preloaded on your roaster. Again, it’s always best to do side-by-side comparisons when making adjustments (such as trying a new profile). Let taste be the deciding factor

Why the Kaffelogic Nano 7?

The Kaffelogic is sophisticated and versatile when you want to experiment but it is as simple and easy to roast effortlessly when that suits you too. Operate the roaster directly from its easy built-in control panel, or, connect to your computer for a more immersive experience with Kaffelogic Studio. In Studio you can watch and record every nuance of the roast, then repeat it in future, or modify it as you see fit, to come up with profiles suited to your taste. Each coffee can have its own profile. Profiles can be adjusted for cupping, coffee processes from natural to washed and everything in between, and a variety of roast levels to match with your brewing methods.

SPECIFICATIONS:

• DIMENSIONS:
  • 4.9" (W) x 4.9" (L) x 17.75" (H)

• MATERIALS:
  • Powder coated steel roast unit with plastic fittings (Nylon PA66)
  • Aluminium roast chamber
  • Double layer borosilicate glass hopper
  • Plastic (Nylon PA66) moulded body parts, & replaceable silicone seal


• Roast Capacity: 120g green coffee. With the BOOST kit, 50 to 200grams
• Roasting time: Less than 10 minutes, typically 7 to 8
• Cooling time: 2 to 4 minutes
• Temperature control: PID control with unique Kaffelogic "look-ahead and gain" scheduling system. Fully user programmable.
• Heat wattage:  1300-1400 watts
• Motor: 60 watt, brushless
• Weight: Base unit 7.9 pounds

ROASTER IS NOT WATERPROOF.

Everything ships from our US East coast facility.
